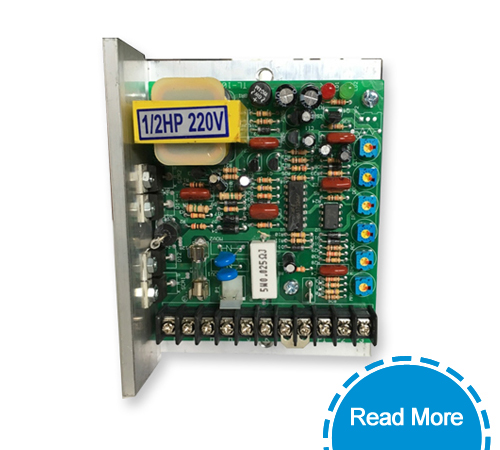

TL-101 Controller(1/2HP以下)

《Product Introduce 》：



FEATURE ADJUSTMENT

UNIT FUNCTION I.R Torque compensation adjustment；Themaximumvaluemust be DEC Deceleration time adjustment (Motor high speed → low speed time) ACC Acceleration time adjustment (Motor low speed → high speed time) MIN Adjust the minimum output voltage (When the VR is turned to the minimum output voltage) MAX  Adjust the maximum output voltage (When the VR is turned to the maximum output voltage) C.L Over current protection (Limit the maximum output current)





WIRING DIAGRAM
